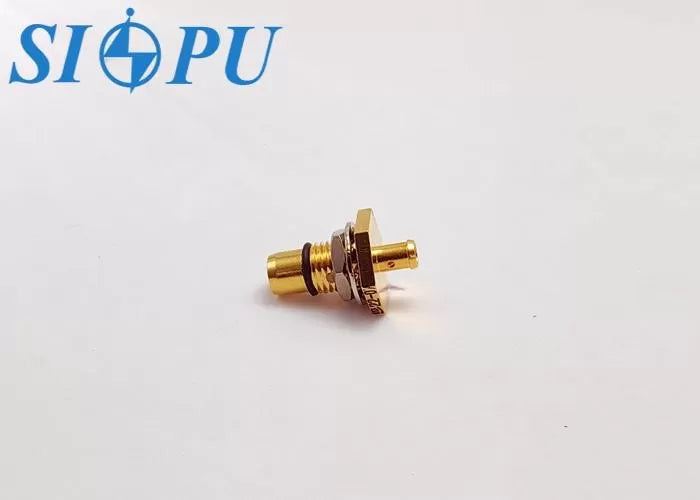

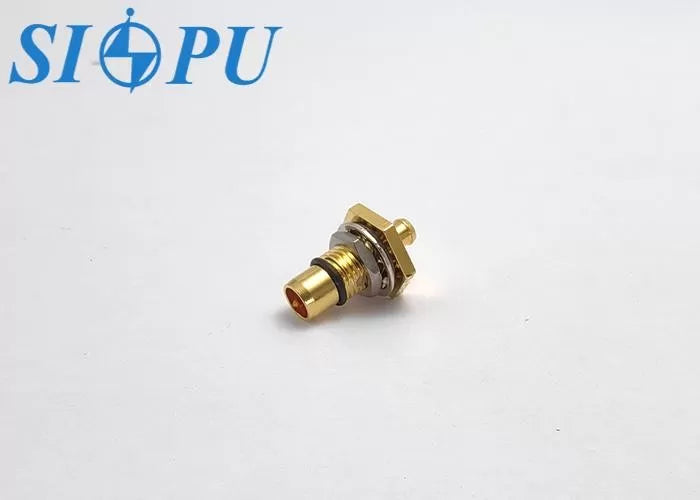

BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible With CXN3506 Cable

Model:BMA(S)-JY3506-T

Product Overview

This BMA male connector is an ultra-compact blind-mate RF coaxial connector designed for high-frequency applications. It is ideal for the interconnection of microwave circuits, particularly in chassis and cabinet assemblies requiring blind mating. The product complies with IEC 61169-33 standards, ensuring reliability and interoperability in modular systems.

Applications

  •     Modular radar and communication systems
  •     Microwave electronic equipment
  •     Chassis and cabinet interconnects
  •     Aerospace and defense modules

Product Features

  •     Screw-mount receptacle for secure and stable installation
  •     Blind-mate (slide-on) design for easy alignment-free connection
  •     Mates with CXN3506 low-loss, phase-stable cable
  •     Wide operating bandwidth
  •     Small size and easy to install
  •     Solderable interface for secure cable termination

🔧 Technical Specifications

Important Technical Parameters



Electrical property



Temperature range

 -65～+125℃



Characteristic impedance



 50Ω

Frequency range

    DC-22GHz



Dielectric withstanding voltage



 1000V



VSWR

 ≤1.15+0.012F(GHz)



Insulation resistance



 ≥5000MΩ

Insertion loss

 ≤0.08√F(GHz)dB



Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times

Materials and Surface Treatment



Center conductor



Beryllium bronze, gold plating

Insulating medium

PTFE



Outer conductor





Brass, gold plating

 / /

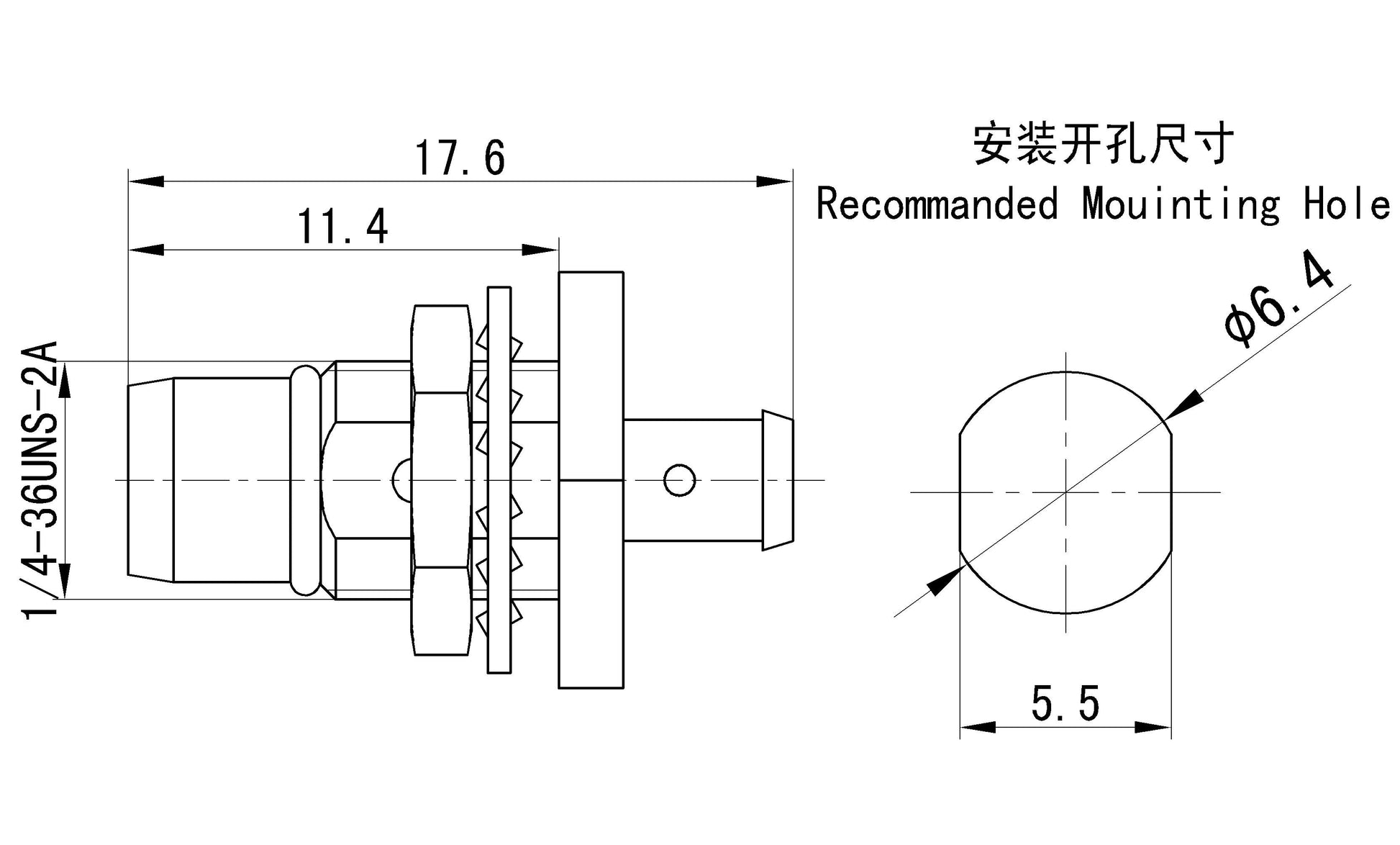

Product Specifications

BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable 0
