BMA Female To SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)

Model:BMA/SMA-KK

Product Overview

RF coaxial adapters are essential for enabling seamless transitions between connectors of the same or different series. They act as bridge components to ensure proper connectivity in RF systems.

Applications
Commonly used in test instruments, RF test cables, and system conversion setups across telecom, aerospace, and industrial applications.

Product Features

  •     Interfaces: BMA Male to SMA Male
  •     Supports wide frequency bandwidth with minimal signal loss
  •     Delivers excellent electrical performance and high signal integrity
  •     Compact, robust design offering long-term reliability

🔧 Technical Specifications

Important Technical Parameters



Electrical property





Temperature range



 -65～+125℃



Characteristic impedance



 50Ω



Frequency range



 DC-18GHz



Dielectric withstanding voltage



 1000V

VSWR

 ≤1.08+0.012F(GHz)



Insulation resistance



 ≥5000MΩ



Insertion loss



≤0.05√F(GHz)dB





Contact resistance





Center conductor



 ≤3.0mΩ



Mechanical property





Outer conductor



 ≤2.0mΩ



Durability



 500 times

Materials and Surface Treatment

Center conductor Beryllium bronze, gold plating Insulating medium PTFE



Outer conductor





Brass, gold plating



 / /

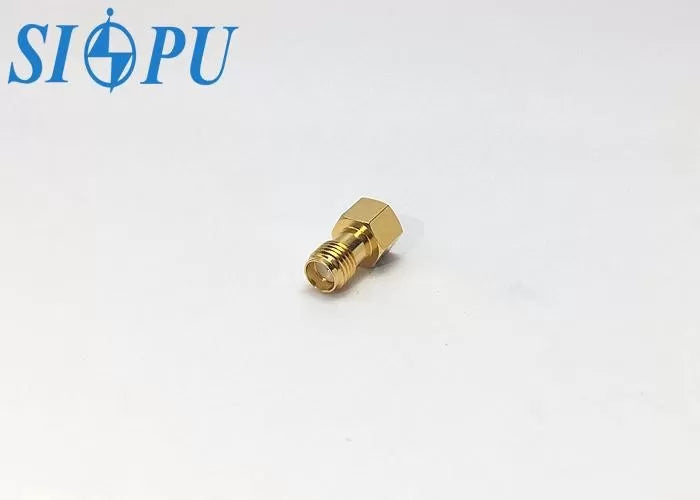

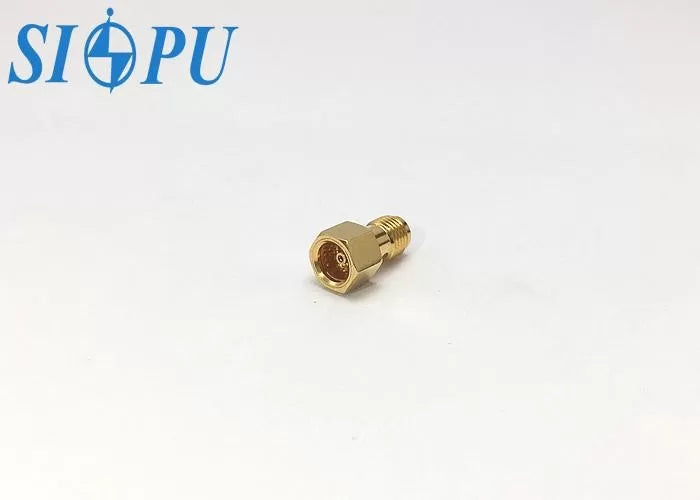

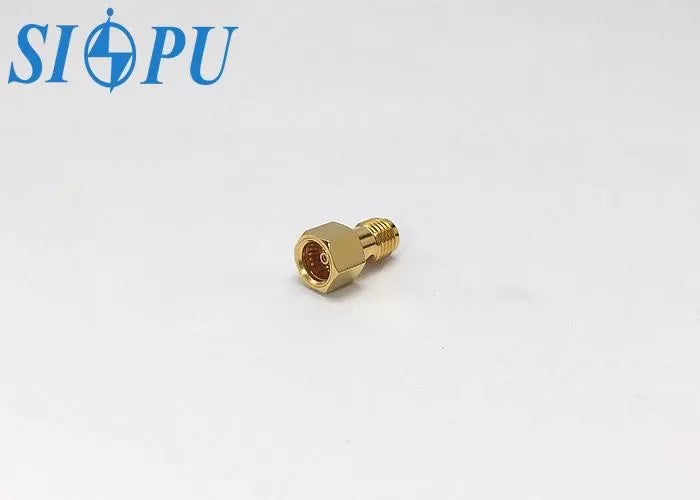

Product Appearance

BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K) 0
