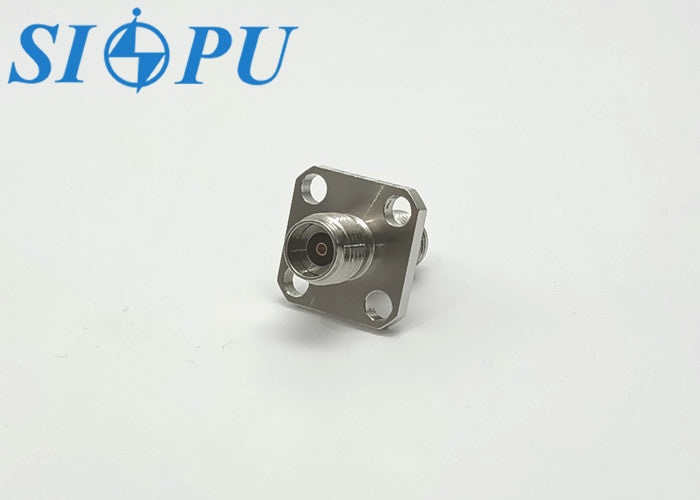

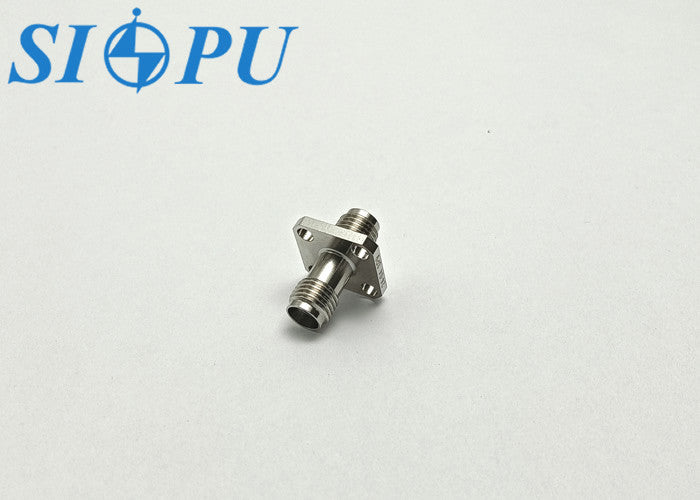

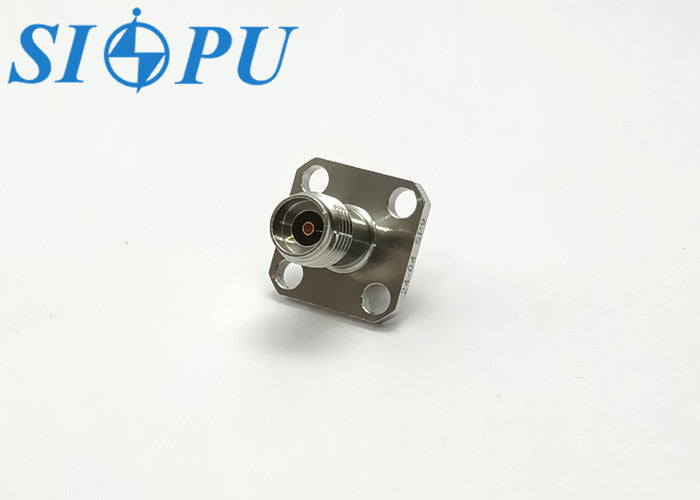

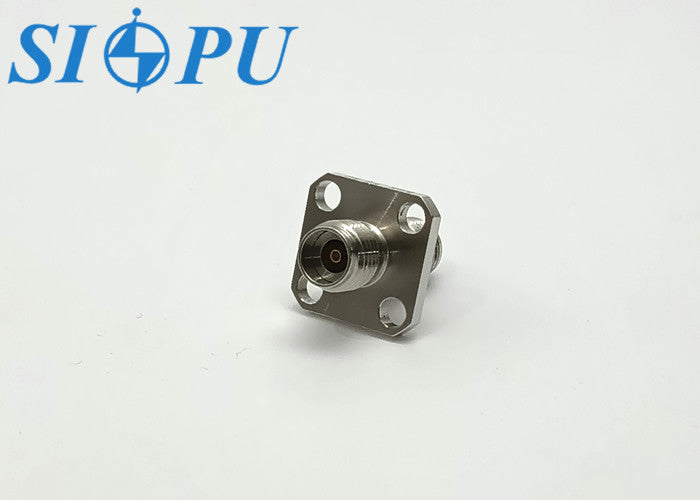

2.92mm Female to Female RF Coaxial Adapter – Flange Mount (Model: 2.92-KFK-2G)
The 2.92-KFK-2G from SIPU is a high-performance 2.92mm female-to-female RF adapter with flange mounting design, supporting signal transmission up to 40 GHz. As part of the precision K-series, it is fully compatible with SMA and 3.5mm connectors, making it suitable for both system integration and test setups.
Built with passivated stainless steel housing and gold-plated beryllium bronze contacts, this adapter ensures excellent electrical stability, minimal insertion loss, and reliable durability for 500 mating cycles.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | 2.92mm Female to Female RF Coaxial Adapter |
| Model Number | 2.92-KFK-2G |

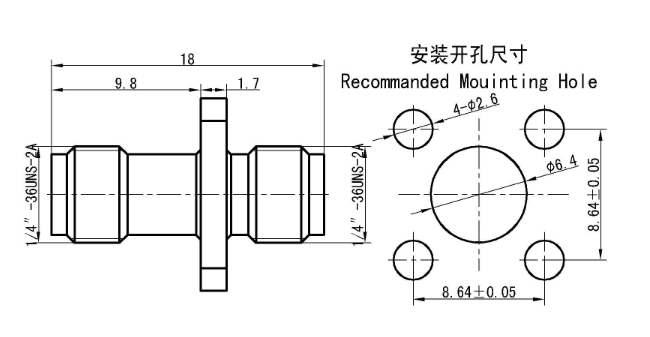

| Mounting Style | Flange Mount (4-Hole) |
| Gender | Female to Female |
| Configuration | Straight |
| Impedance | 50 Ω |
| Frequency Range | DC to 40 GHz |
| Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.05 + 0.008F(GHz) |
| Insertion Loss | ≤ 0.05√F(GHz) dB |
| Contact Resistance | Center ≤ 3.0 mΩ / Outer ≤ 2.0 mΩ |
| Durability (Mating Cycles) | ≥ 500 |
| Temperature Range | -65°C to +125°C |
⚙ Materials & Finish
| Component | Material | Plating/Remarks |
|---|---|---|
| Center Conductor | Beryllium Bronze | Gold Plated |
| Outer Conductor | Stainless Steel | Passivated |
| Insulating Medium | PEI | – |
