SIPU CONNECTORS

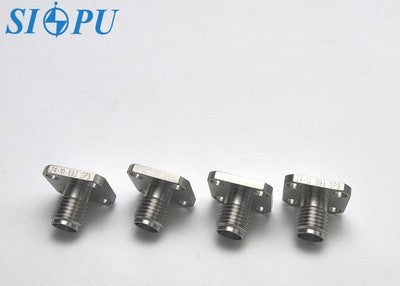

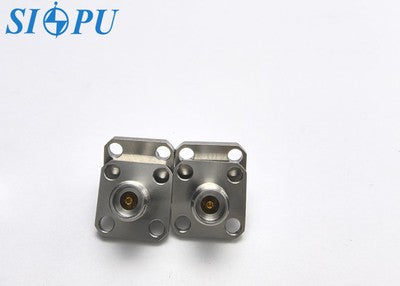

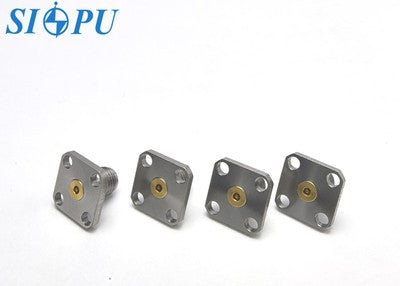

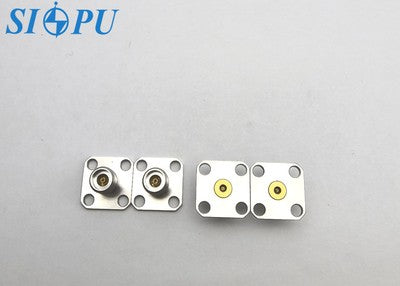

2.92mm Female RF Coaxial Connector – 4-Hole Flange Mount, Panel Socket
2.92mm Female RF Coaxial Connector – 4-Hole Flange Mount, Panel Socket
Regular price
$16.69 USD
Regular price
Sale price
$16.69 USD
Quantity
Couldn't load pickup availability
2.92mm Female RF Coaxial Connector – 4-Hole Flange Mount, Panel Socket (Model: 2.92-KFD-4G)
The 2.92-KFD-4G from SIPU is a high-frequency precision RF connector designed with a 4-hole flange panel mount and a 2.92mm female interface. Belonging to the K series, this connector is fully compatible with SMA and 3.5mm connectors, making it a versatile solution for millimeter-wave systems and high-density test environments.
Manufactured using passivated stainless steel with a gold-plated beryllium copper center contact, this connector ensures excellent signal integrity, long service life, and reliable performance up to 40 GHz.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | 2.92mm Female RF Coaxial Connector |
| Model Number | 2.92-KFD-4G |

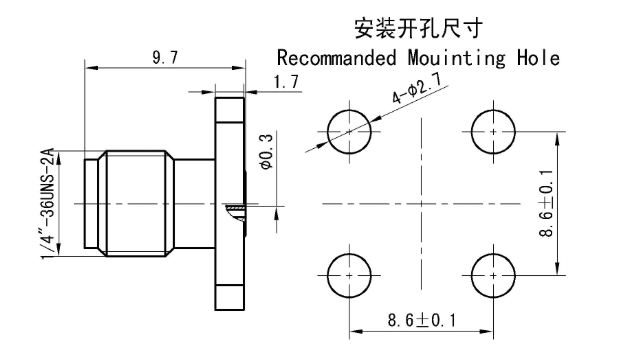

| Mounting Style | 4-Hole Flange Panel Mount |
| Gender | Female |
| Configuration | Straight |
| Impedance | 50 Ω |
| Frequency Range | DC to 40 GHz |
| Dielectric Withstanding Voltage | 1000 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.1 + 0.01F(GHz) |
| Insertion Loss | ≤ 0.05√F(GHz) dB |
| Contact Resistance | Center ≤ 3.0 mΩ / Outer ≤ 2.0 mΩ |
| Durability (Mating Cycles) | ≥ 500 |
| Temperature Range | -55°C to +125°C |
⚙ Materials & Finish
| Component | Material | Plating/Remarks |
|---|---|---|
| Center Conductor | Beryllium Copper | Gold Plated |
| Outer Conductor | Stainless Steel | Passivated |
| Insulating Medium | PEI | – |
