SIPU CONNECTORS

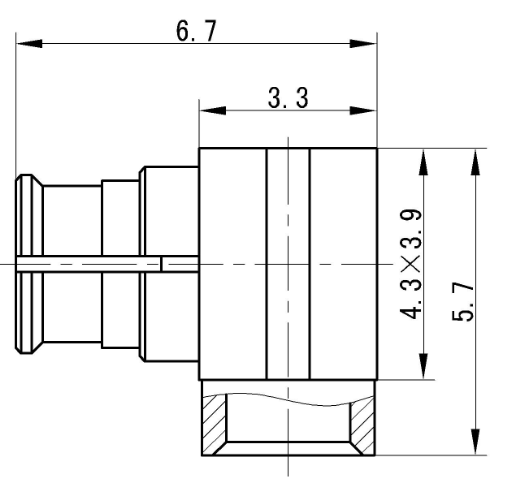

SMP Female Right-Angle RF Coaxial Connector, Compatible with 2# Semi-Rigid Cables
SMP Female Right-Angle RF Coaxial Connector, Compatible with 2# Semi-Rigid Cables
Regular price
$8.15 USD
Regular price
Sale price
$8.15 USD
Quantity
Couldn't load pickup availability
SMP Female Right-Angle RF Coaxial Connector – Compatible with 2# Semi-Rigid Cables (Model: SMP-KWB2)
The SMP-KWB2 from SIPU is a right-angle SMP female RF coaxial connector specifically designed for 2# semi-rigid and semi-flexible cables. With its compact footprint, high-frequency support up to 26.5 GHz, and excellent vibration resistance, it is ideal for high-density modular RF systems that require robust mechanical performance and limited axial/radial tolerance.
Constructed with gold-plated beryllium bronze and a PTFE dielectric, this connector supports fast push-on mating, low signal loss, and long service life over 500 mating cycles.
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | SMP Female RF Coaxial Connector |
| Model Number | SMP-KWB2 |
| Mounting Style | Right Angle, Cable Mount (2# Semi-Rigid) |
| Gender | Female |
| Configuration | Right Angle |
| Cable Compatibility | 2# Semi-Rigid / Semi-Flexible Cables |
| Impedance | 50 Ω |
| Frequency Range | DC to 26.5 GHz |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | ≥ 5000 MΩ |
| VSWR | ≤ 1.1 + 0.02F(GHz) |
| Insertion Loss | ≤ 0.07√F(GHz) dB |
| Contact Resistance | Center ≤ 6.0 mΩ / Outer ≤ 2.0 mΩ |
| Durability (Mating Cycles) | ≥ 500 |
| Temperature Range | -65°C to +125°C |
⚙ Materials & Finish
| Component | Material | Plating/Remarks |
|---|---|---|
| Center Conductor | Beryllium Bronze | Gold Plated |
| Outer Conductor | Beryllium Bronze | Gold Plated |
| Insulating Medium | PTFE | – |
