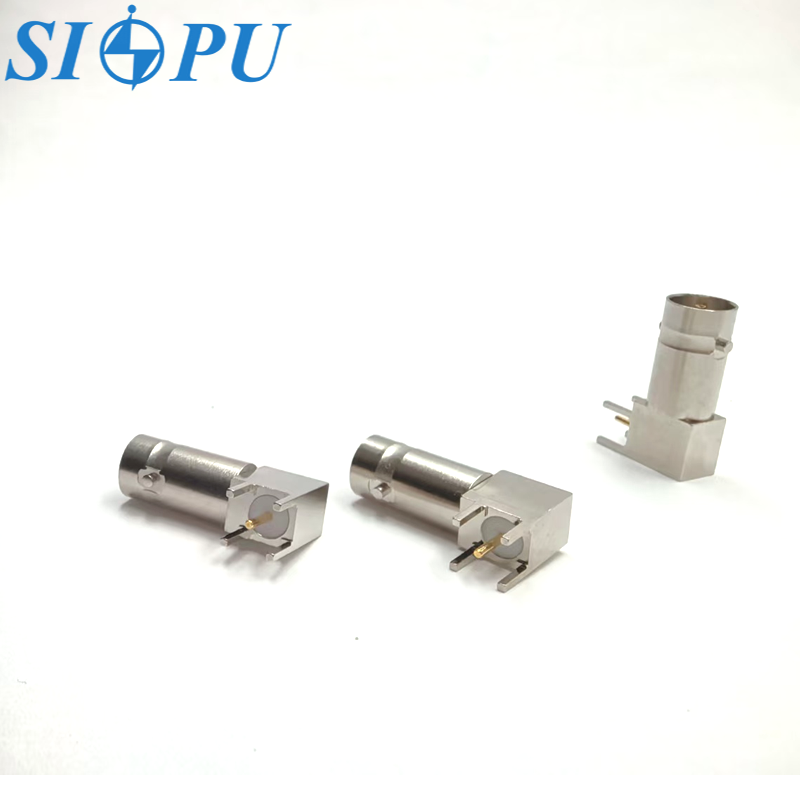

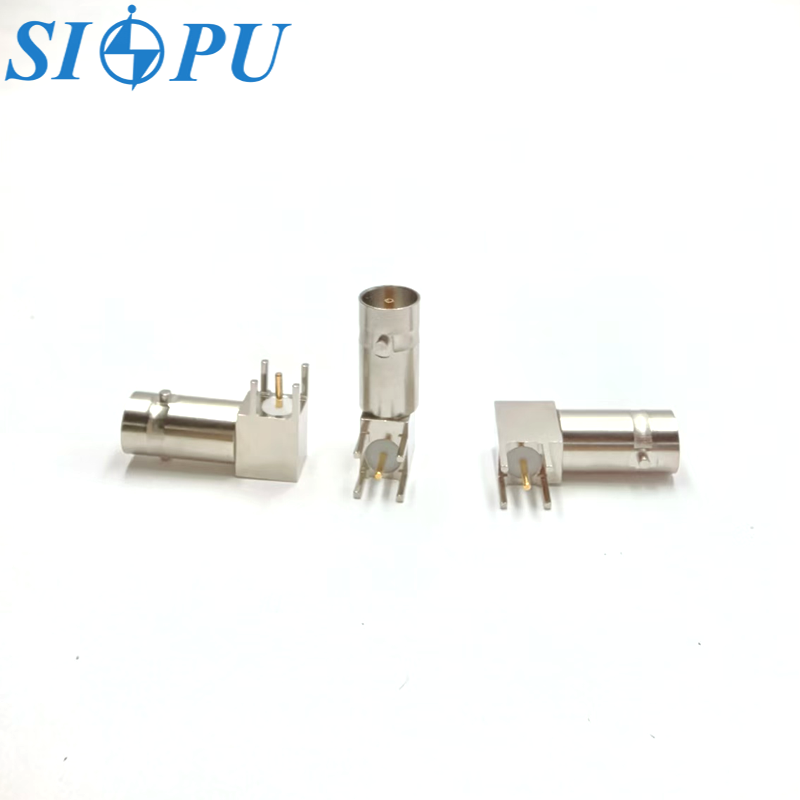

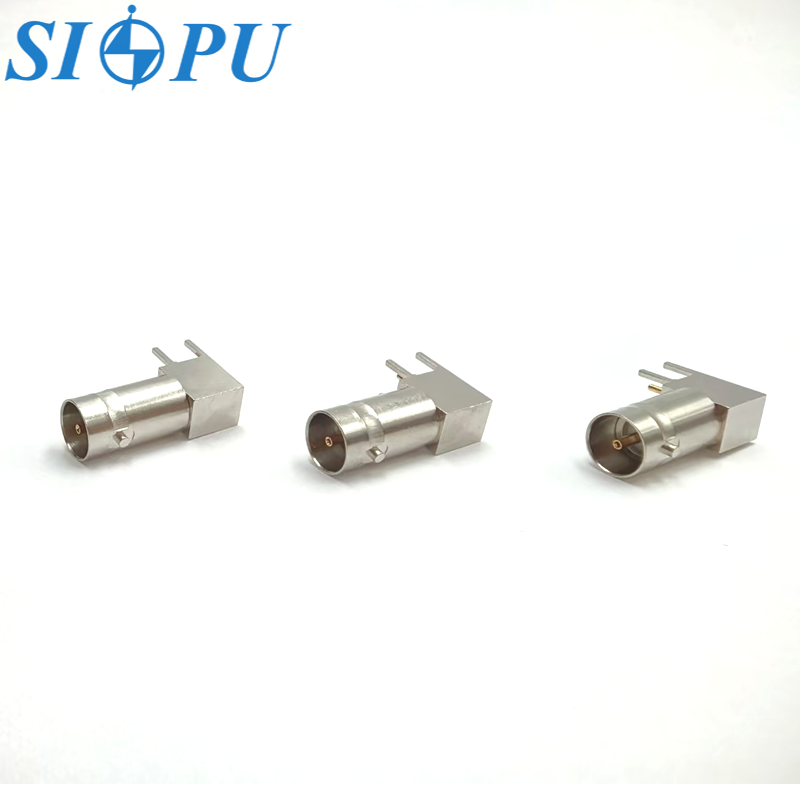

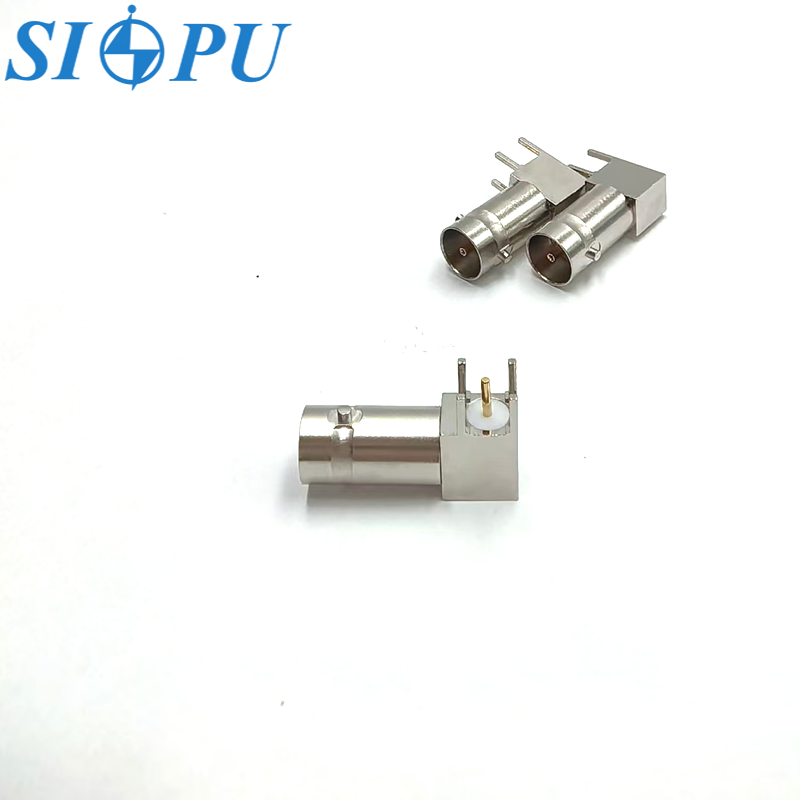

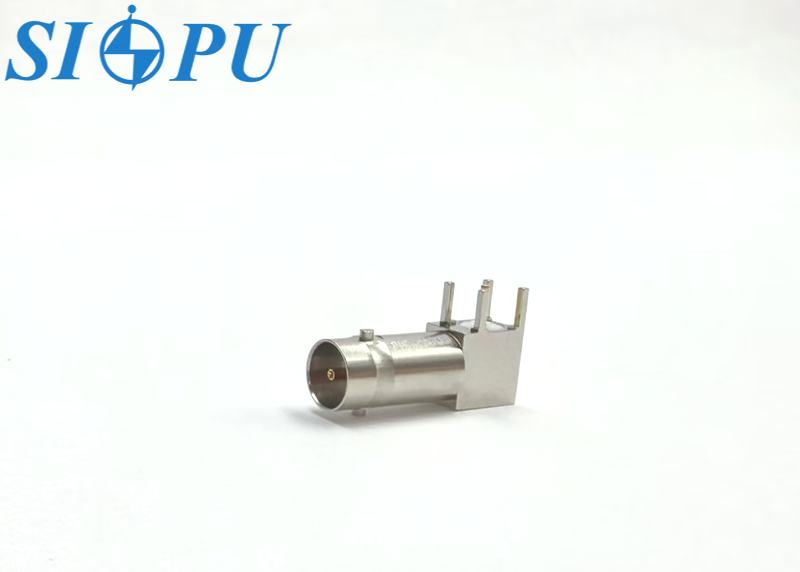

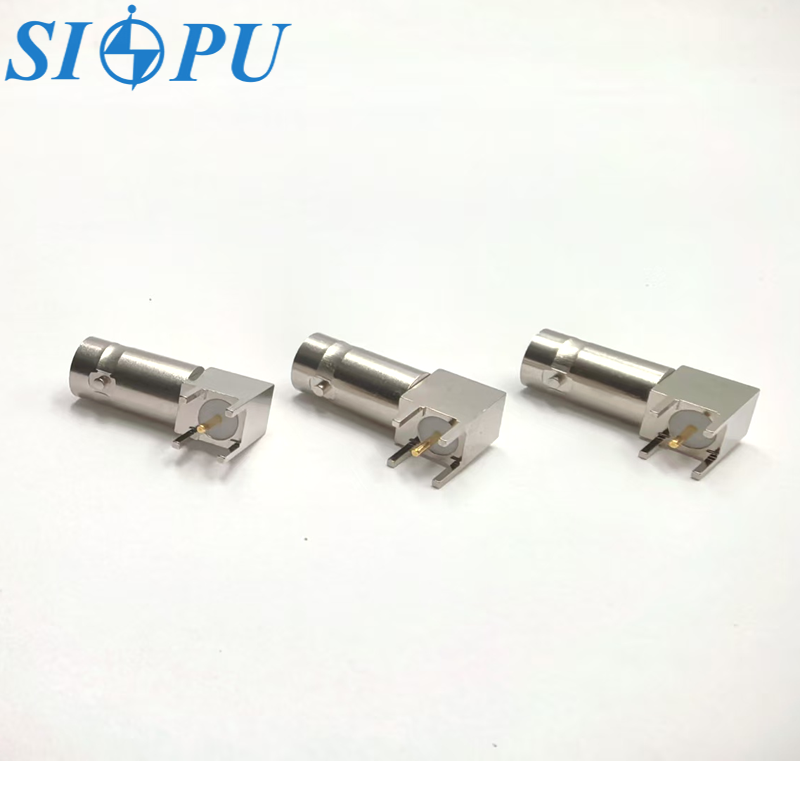

Mini-BNC Female Right-Angle PCB Socket 75Ω, 031-70255 Compatible

Mini-BNC Female Right-Angle PCB Connector, 75 Ohm, Through-Hole Solder Type, Compatible with Amphenol RF 031-70255

Model: miniBNC-75KWHD

Product Overview

This 75Ω Mini-BNC female right-angle PCB connector is designed for through-hole solder mounting in broadcast video, telecommunications, RF transmission, and electronic equipment applications.

Featuring a compact right-angle structure and reliable bayonet coupling interface, the connector provides stable impedance performance and secure signal transmission for high-density PCB layouts.

The connector is designed as a compatible alternative to Amphenol RF 031-70255, offering equivalent interface compatibility for standard Mini-BNC applications.

Product Features

• 75Ω Mini-BNC female PCB connector
• Right-angle through-hole solder mounting design
• Compact structure for high-density PCB layouts
• Bayonet locking interface for secure connection
• Stable electrical performance and low VSWR
• Suitable for broadcast video and RF systems
• Compatible alternative to Amphenol RF 031-70255
